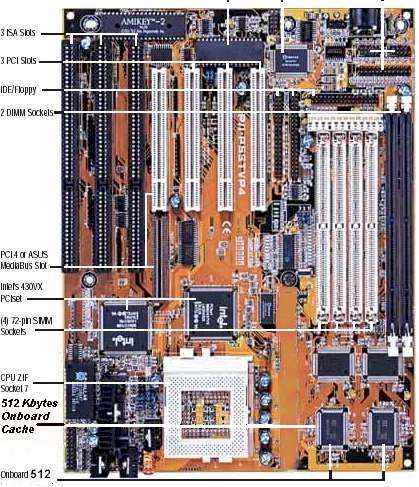

Another Socket 7 Auction:(See also: Asus P55TVP4 Latest Revision 2.3 Motherboardwith
|
 |
- Cyrix 6x86MX PR200
- Intel 430VX PCIset
- 32-bit PCI Bus and 16-bit ISA Bus compatible
| On Board 512KB |
- INCLUDED: Four 72-pin 8MB DRAM = 32 Megabytes
- Also has 2 x 168-pin DIMM Socket Support SDRAM Up to 32MB
/FPM)+SDRAM=128MB -->
(60 ns DRAM required when using 66MHz external clock)
- 1 Floppy Port (up to 2.88MB, Japan 3 Mode Floppy Support)
- 2 Serial Ports (16550 Fast UART Compatible)
- 1 Parallel Port (ECP, EPP Port)
- IrDA TX/RX Header (Optional)
- 2 x PCI Bus Master IDE ports (Support up to 4 IDE devices and LS-120MB
Floppy Drive) Support:
- PIO Mode 3 & 4
- DMA Mode 2
- 3 32-bit PCI slots
- 1 ASUS MediaBus slot Rev. 2.0 (1 x PCI slot plus ASUS proprietary ISA MediaBus slot)
- 3 16-bit ISA slots
- Award Pentium PCI BIOS with DMI, Green, Plug and Play Features
- NCR PCI SCSI BIOS
- 1M-bit Flash EPROM
- 27.2cm x 22.2cm (10.7" x 8.7")
- USB
- External PS/2 Mouse Connector (Motherboard built-in PS/2 mouse function)
- External Infrared Module
